Air Amplifier Stations
Air Amplifiers are suitable for compressing air or nitrogen. These units are capable of increasing normal shop pressures of 4-6 bar to a desired final pressure. The units themselves are also operated using shop air and can be provided with a variety of amplification ratios.
Please refer the information located the bottom of this page for further details on options available. If you require any additional information, or would like to enquire about the bespoke solution please do not hesitate to get in touch.
Operating/Installation Information
These units require an air supply to drive them and a gas supply which will be amplified by the unit. Recommended air drive pressure 1-10 bar.
Simply connect air drive & gas supply to the unit and utilise regulator on air controls to increase the drive pressure, thus increasing the gas pressure within the unit.
Information on connections sizes will be supplied with your unit as these are dependant on the air amplifier included within your station.
Data Sheet – Air Amplifier — Brochure covering the range of air amplifiers
Air Amplifier Station MPLV Series
Maximator MPLV series air amplifier stations are extremely compact systems that are equipped with all required components for an effective pressure increase. The stations include an air control unit consisting of a filter, pressure regulator with pressure gauge and air shut-off valve. Due to the pressure ratio of the air amplifier, the desired working pressure can be preset with the air control unit.
All stations have a tank including a safety device and can optionally be equipped with a pressure regulation. Air amplifier stations that have an EX marking are suitable for use in potentially explosive areas (II 2G Ex h IIB T4 Gb)
Air Amplifier Station SPLV Series
Maximator SPLV series air amplifier stations are extremely compact systems that are equipped with all required components for an effective pressure increase. The stations include an air control unit consisting of a filter, pressure regulator with pressure gauge and air shut-off valve. Due to the pressure ratio of the air amplifier, the desired working pressure can be preset with the air control unit.
All stations have a tank including a safety device as well as a pressure regulation and can optionally be equipped with an emergency stop. Air amplifier stations that have an EX marking are suitable for use in potentially explosive areas (II 2G Ex h IIB T4 Gb).

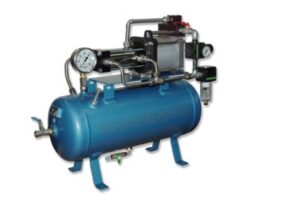

Air Amplifier Station GPLV Series
Maximator GPLV series air amplifier stations are extremely compact systems that are equipped with all required components for an effective pressure increase. The stations include an air control unit consisting of a filter, pressure regulator with pressure gauge and air shut-off valve. Due to the pressure ratio of the air amplifier, the desired working pressure can be preset with the air control unit.
All stations have a tank including a safety device as well as a pressure regulation and can optionally be equipped with an emergency stop. Air amplifier stations that have an EX marking are suitable for use in potentially explosive areas (II 2G Ex h IIB T4 Gb)
ATU Models |
| ATU-MPLV2-3 |
| ATU-MPLV2-500 |
| ATU-MPLV4-40 |
| ATU-MPLV7-4 |
| ATU-SPLV2-40 |
| ATU-SPLV3 |
| ATU-GPLV2-40 |
| ATU-GPLV5-50 |
| ATU-GPLV5 |
| ATU-GPLV2-500 |
| ATU-SPLV10 |
