The Maximator MaxH2 Series is a Gas Compression System, specifically designed for Hydrogen compression up to 1000 bar, with scalable volume flow.

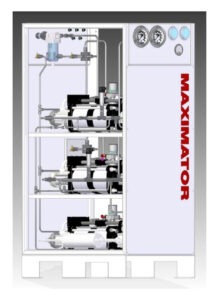

A standard configuration up to 1000 bar consists of one cabinet (either Manual or PLC control) and up to three gas boosters –

first stage module up to 140 bar,

second stage module up to 400 bar

and the final stage module up to 1000 bar.

This configuration will provide a gas outlet flow of 1 kg Hydrogen per hour.

For higher outlet capacities more stages can be connected easily.

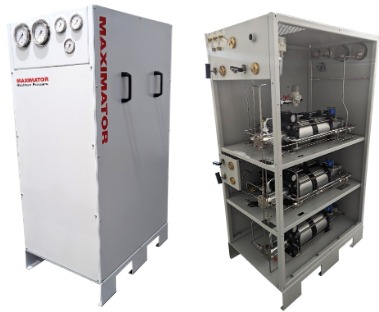

This complete series is installed in a robust painted steel frame with removable panels for easy installation, exchange and access.

This system can be easily installed and combined.

MAXH2 lower case copy (1)
MAXH2 Image
MaxH2 220x300
IMG 20221212 122212 1 219x300
MaxH2 Data Sheet
Max H2 Flexdrive 768x80

The efficiency of the gas booster will be improved by the patent-proven “FLEXDRIVE” modification.

This modification allows the air driven gas booster to switch between one air drive section and two air drive sections. With this modification we are able to save up to 30 % Energy or will generate a reduced filling time (depending on the process parameter).

Untitled 3 1024x633
Untitled 4 768x363
Flexdrive Data Sheet

Enquiries

If you are interested in a quotation for one of our MaxH2 Systems and/or Flexdrive, please click on the button below, or get in contact with our sales team

Tel 01606 636000 or email sales@maximator.co.uk
